Porcelain Post Insulators

ANSI ceramic post insulators

ceramic post insulators ANSI 57 series

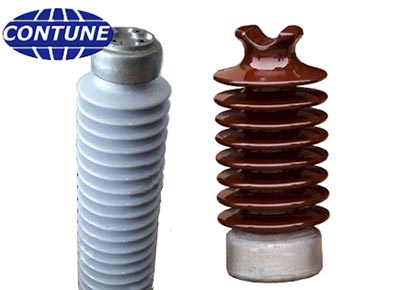

Porcelain post insulators are widely used on electrical power substation and transmission line systems.

In the substation line system, post insulators are commonly seen as station post insulators. On both sides of the station post insulator, there are flanges with drilled holes for bolts fixing. These station post insulators are fixed on the bottom base and with bus bar support on the top.

While for the power transmission lines, the post insulators are normally used as line post insulators. Line post insulator also has a bottom base, which is to be fixed on poles or crossarms.On the head side, there is a groove for the conductor. Some line post insulators have vertical or horizontal clamps for conductors, the type and direction depend on the use of insulators.

Contune International Co ltd mainly supplies station post insulator according to IEC standard(International standard), like C series post insulator: C4-550 post insulator, C6-550 post insulator,c6-1050 post insulator and etc.

The line post insulator supplied by “Contune International” is normally seen as ANSI standard (American standard)based products. Like ANSI 57 series, which are: 57-1 post insulator,57-2 post insulator,57-3 post insulator,57-4 post insulator


How to identify whether a ceramic post type insulator can reach its designed mechanical requirement?
>> See more about Post Insulator Tester

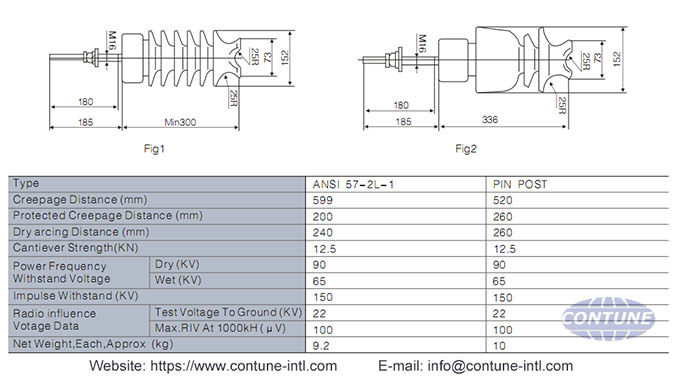

Specifications of Ceramic Post Insulator -  ANSI 57-X series:

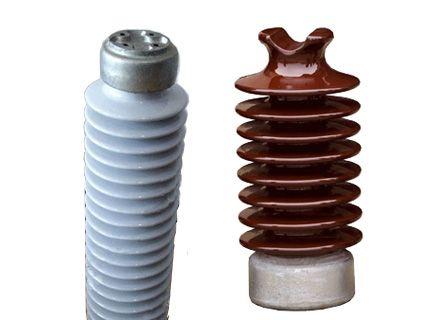

Porcelain insulators ANSI 57 series post type insulators

high voltage porcelain insulators 57-2 series

Ceramic insulators 57 series for high voltage substations











Porcelain insulators , ,
About Tester of HV insulator
