Testing Machines of Insulators
Electrical test machines and mechanical test machines for high voltage overhead transmission line insulators.

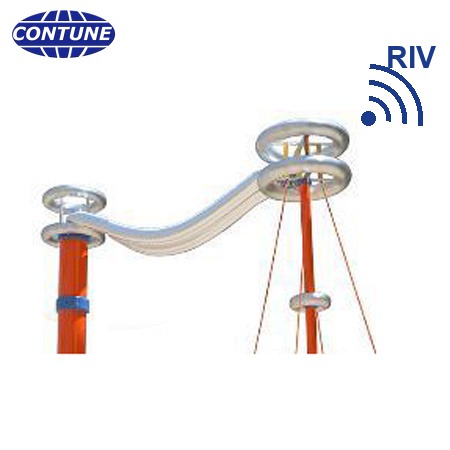

RIV Test System – Radio Influence Voltage (RI) Test Set for High Voltage Insulators — IEC 60437:2023
IEC 60437:2023 compliant RIV / Radio Influence Voltage test system for high voltage insulator radio interference measurement. Voltage and withstand time adjustable, customizable, 150 kV to 1000 kV models for EHV and UHV laboratories.

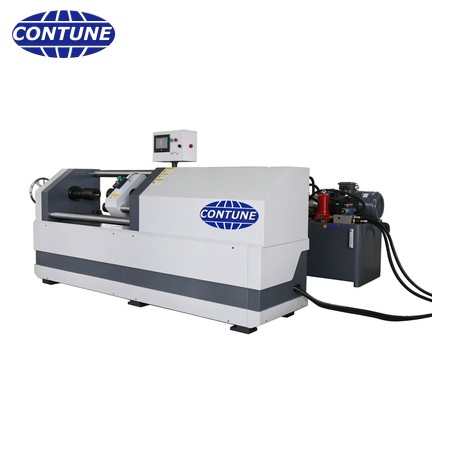

Insulator Routine Tensile Testing Machine (Semi Tensile Machine) 600 kN for Ceramic & Glass Disc Insulators — IEC 60383-1 Clause 31
Semi tensile machine C-TTM-BL-600 performs the quick routine tensile test (50% of the specified mechanical load, SML) on ceramic and glass disc insulator units in accordance with IEC 60383-1 Clause 31 — 600 kN capacity, PLC control, one insulator per test, ideal for production-line quality inspection.
Post Insulator Dimensional Deviation Inspection Platform (Parallelism, Eccentricity, Camber & Shed Angle Tester) — GB/T 8287.1 / IEC 60168 Annex A
The CT-PD26 post insulator dimensional deviation inspection platform carries out the shape and position deviation checks of GB/T 8287.1-2008 Annex A (IEC 60168 Annex A) on post insulators up to 1000 mm structural height: parallelism, eccentricity, camber, shed angle, angular deviation of the fixing holes, structural height and shed diameter, with a vertical measuring module and a horizontal measuring module.
Insulator Deviation Checking Device (Axial & Radial Deviation Tester) for Disc Ceramic & Glass Insulators
The CT-AD26 deviation checking device performs the dimensional check of IEC 60383-1 on disc type ceramic and glass insulator units: disc diameter, structural height, axial deviation and radial deviation, with digital measuring and automatic maximum/minimum deviation calculation.
Insulator Locking Pin Testing Machine (Cotter Pin Tester) for Ball & Socket Couplings
The CT-LP26 locking pin testing machine verifies the locking system of insulator ball and socket couplings to IEC 60383-1. Tensile load is applied along the pin axis until the pin slides; the peak load is recorded automatically.
Insulator Testing Machine of Thermal-Mechanical Stress
The thermal-mechanical stress test is a sample test for composite insulators and porcelain insulators required in IEC. It tests insulators with the cycling of high temperatures and low-temperature environments.
Combined Electro-Mechanical Strength Tester of Insulators
A combined electromechanical strength test is a significant test for electrical ceramic disc insulators of overhead lines. This testing machine is essential for the manufacture of porcelain insulators to inspect and control quality.

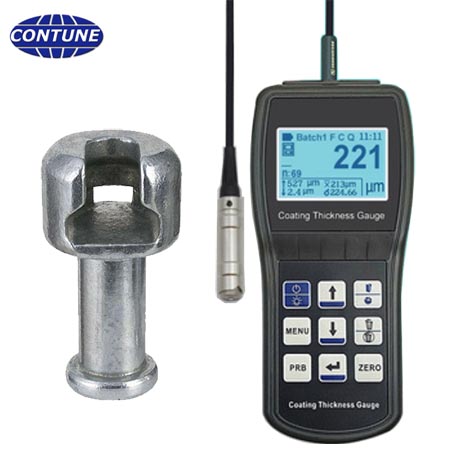

Zinc Coating Thickness Test Device for Galvanized Insulator Fittings
Zinc thickness test device is a portable test equipment for zinc coating thickness of metallic fitting of high voltage insulators.
Water diffusion test device for FRP core
The water diffusion test device is to test the leakage current and withstand property of the FRP/ECR core of composite insulators under AC voltage after boiling in salty water. This test is defined and required in the IEC standard for tests of composite insulators.
Tracking & Erosion Test Machine of Polymer insulators
Tracking & Erosion tester is used for tests of silicon rubber shed and housing of electrical polymeric insulators. It is to test the anti-tracking and erosion ability of its silicon rubber material as per IEC or DIN EN standard.
Insulator Porosity and Dye Penetration Tester for Porcelain Insulator Units
The insulator porosity test machine is to inspect the porosity property of the HV porcelain insulator under a constant high-pressure environment with dye penetration.
Thermal Shock Testing Machine for Ceramic and Glass Disc Insulators
Thermal shock test for ceramic disc insulators as per IEC 60383 Clause 15.1 in heated air and cold water with temperature deviation of 50K.
Insulator Test Equipment for Power Frequency Test
Test equipment for electrical tests of overhead line insulators. This test machine tests high voltage insulators with power voltage and frequency. The power frequency tests are required in IEC, ANSI, or any other technical standards for insulators of OHTL.
Insulator Test Machine of Tension & Cantilever
This equipment is applied to mechanical tensile and bending (cantilever) tests of insulators below 36KV with section length less than 1m. It's an economic test solution for the manufacturer of 11/33kV insulators.
Insulator Test Machine for Tensile Test
This insulator test machine is designed to perform mechanical property tests of long rod insulators, steel wires, cables, conductors, power fittings, chains, electrical devices, it's also available for mechanical property tensile tests on other specimens with long shapes.
Insulators Testing Machine for Cantilever & Torsion Test
Cantilever & torsion test equipment is used for the mechanical bending test and the torsion test of post insulators according to the test methods and acceptance criteria of technical standard IEC 61109 and IEC 60383.
